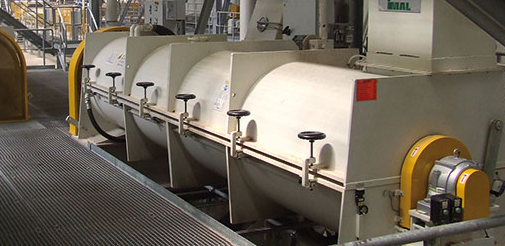

GLUE BLENDER

Exhibit Highlight: Cost-effective

IPL blenders have long chambers for low speed and long blending of particles and resin. This reduces the breakage of the large particles, minimizes the centrifugation of the fines and distributes the glue over all the fractions in a much more uniform and even manner. The optional Multicomp CGDW, blender mixing time control unit, enables a good quality and constant blend to be achieved by adjusting the discharge gate.

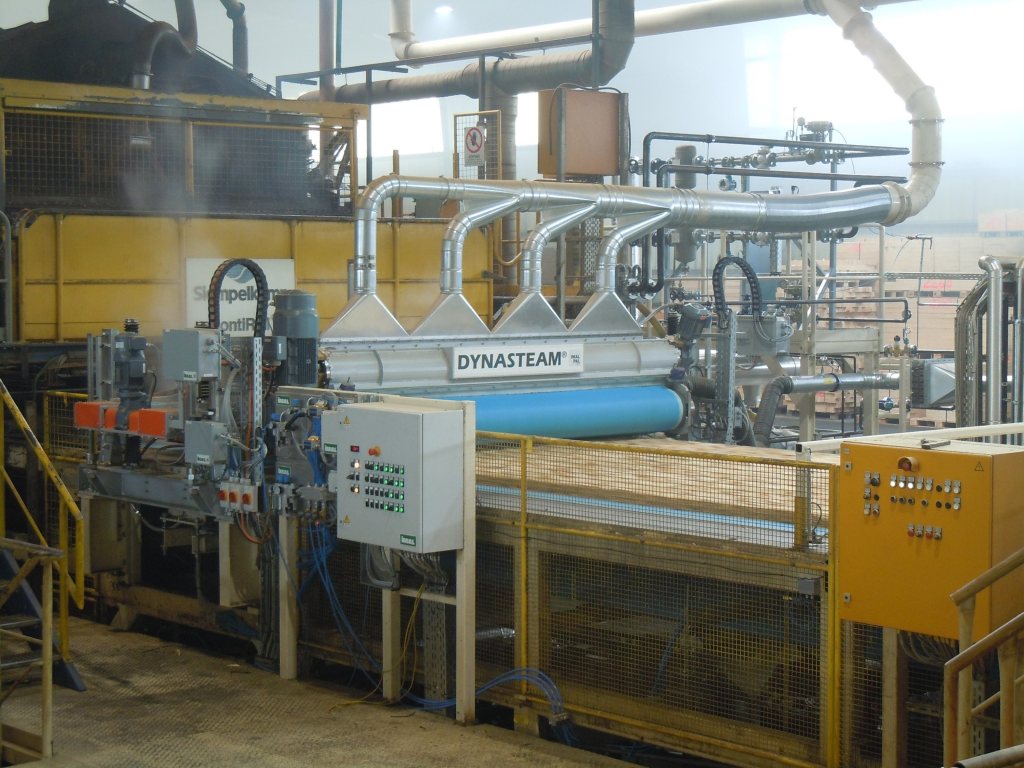

STEAM INJECTION SYSTEM

Exhibit Highlight: Smart ProductionCost-effective

DYNASTEAM®-C has been designed to inject a continuous pre-set quantity of steam into the bottom of the wooden mat just before it enters the press (the steam has the effect of raising the temperature of the mat, leading to faster cure times, and an increase, as a result, in the capacity of the production line). This system is to work in conjunction with the TS100 mat sprayer unit which damps the top of the mat, forming a film of water on the surface which turns into steam as soon as it comes into contact with the hot press plates, to balance out the steam injected into the bottom layer. The quantity of steam injected into the fibre is regulated by PLC in proportion to the speed at which the mat travels along the production line.

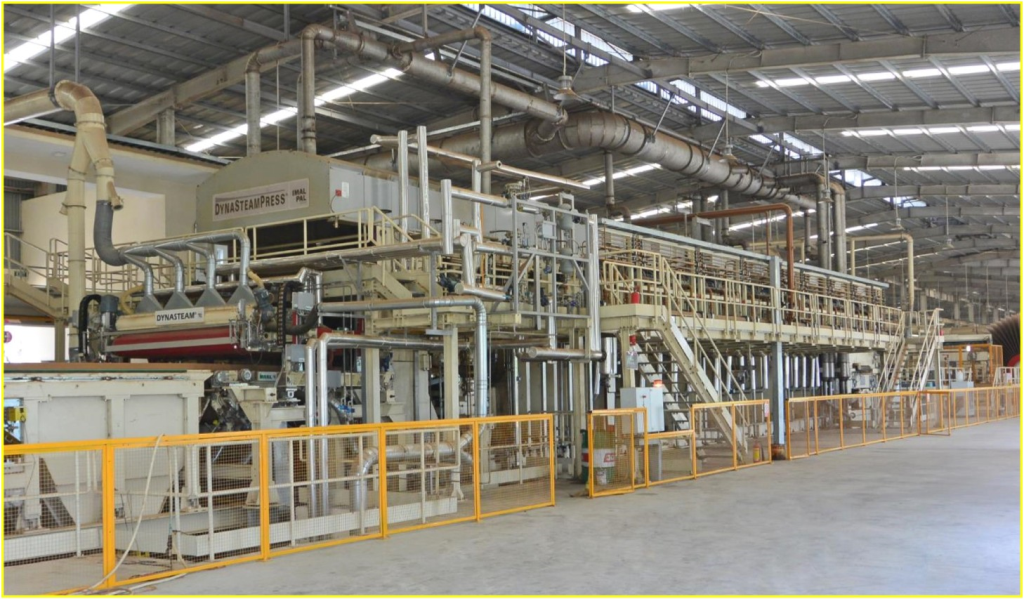

AUTOMATIC CONTINUOUS PRESS CONTROL - DYNAPRESS

Exhibit Highlight: Smart ProductionCost-effective

The programmes for the various press cycles, which have been optimised for each production are stored in the Server PC, along with all the configurations for the hydraulic control, temperature, speed control, belt displacement and so on relating to a continuous press.
The Scada PC has, for each production stored, all the parameters it needs for press control, furthermore some pressure and level graphs are also stored which provide a visual comprehension of the production in progress and enable comparison with the current setpoints in order to highlight any differences which could emerge.
Press opening is controlled by high precision position transducers which keep the system updated on the position of the press the system updated on the position of the press opening in relation to each regulator equipped frame.
