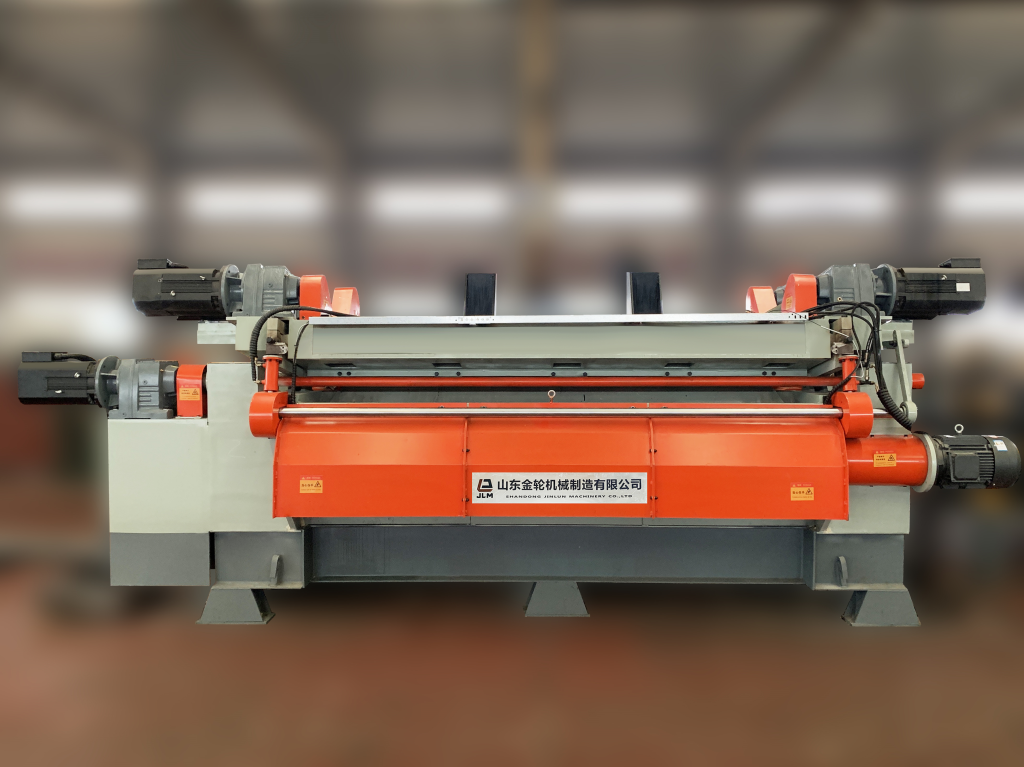

8 FEET OSB WOOD STRAND PEELING MACHINE

Global debut

Exhibit Highlight: Panel Furniture Solutions

Model:JLXQ260-50D
Blade size:2900*180*16
Maximum log diameter:500mm
Minimum log diameter:35mm
strand size:L(customized)*30-100mm(adjustable)
peeling speed:80-240m/min
working speed:150-170m/min
Capacity:4m3/h
Single roller power:2*22kw
Double roller power:2*22kw
Feeding power:22kw
smash power:11kw
Total weight:13500kgs
Overall size:6800*3200*2100mm

4 FEET SPINDLELESS VENEER PEELING MACHINE

East China first show

Exhibit Highlight: Panel Furniture Solutions

Model: JLXQ130-50BB
Maximum log diameter:500mm
Minimum log diameter:28mm
Veneer thickness: 0.5-3.2mm
veneer tolerance:0.05mm
peeling speed: 40-90m/min
product capacity: 35m3/day
single roller power:2*5.5kw
Double roller power:2*7.5kw
Feeding power:7.5kw(servo motor)
clipper power: 1.5kw(servo motor)
Conveyor power: 1.5kw
Weight: 7500kgs
overall size: 4500*2100*1650mm

8 FEET FULL AUTOMATIC VENEER PEELING LINE

Machine description
1. log conveyor for debarker
2. log debarker-heavy model
3. log position corrector
4. log conveyor for peeling machine
5. venee peeling machine
6. veneer stacker
product capacity: 100m3/day
operator: 2
Total power:186kw
overall size: 27m*7m
